Height x width x depth

2300mm×800(1000)mm×1500/1660mm

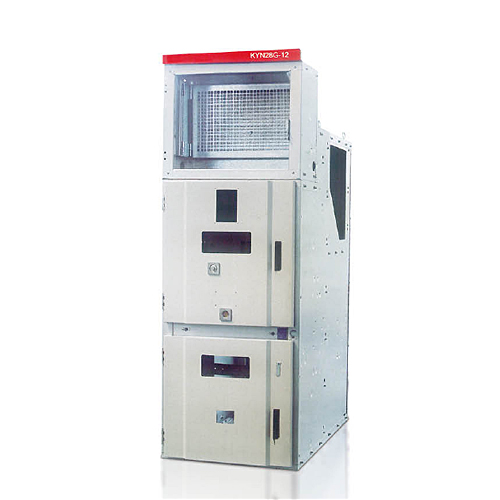

KYN25G-12 In addition to the common advantages of KYN28-12 in electrical performance and structural layout, the switching equipment also has its novel front door structure and reliable interlock device, and has obtained a number of national utility model patents.

1. Only close the door can operate the handcart. The handcart cannot operate without closing the breaker room door; The door of the circuit breaker room cannot be opened until the handcar returns to the test position (Patent no. : 200620104623.4). Meet gb3906-2006 new added content: "only when the current door is closed, can the removable parts from the working position to other positions or from other positions to work position", improve the protection of personnel.

2. Equipped with an emergency brake equipment, new circuit breaker in the working position to realize manual emergency brake, manual emergency break-brake device in medallion ark brake push rod rotation to the job position in working status, and stay in the work place, in need of urgent brake circuit breaker, the push button directly implement emergency brake, shortens the time of break-brake operations (patent no. : 200620104624.9).

3. Change flat type door structure to be stereo type door structure, highlight among have stereo feeling, newly designed five claw type door wring chain, overcome the malpractice that the front door falls horn, change original screw type door lock to raba type door lock, make the opening of the door more convenient and quick.

4. Added the operation procedure label to remind the customer to operate according to the normal procedure.

5. Material can be made of galvanized sheet or aluminized zinc coated sheet.

6. The handcar can be equipped with an electric chassis for remote control.

7. The ground switch can be equipped with an electric operating mechanism for remote control.
