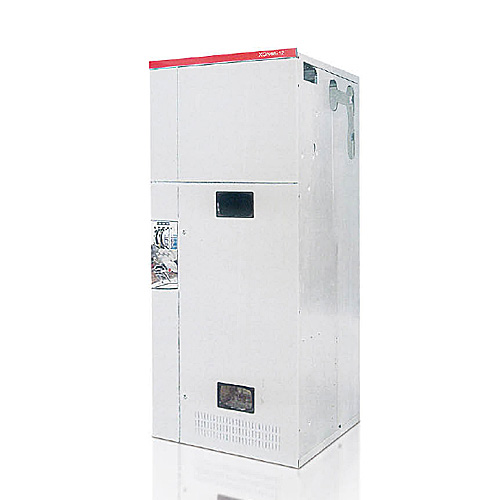

XGN 66-12 switch cabinet is suitable for 3-10kV three-phase AC and 50Hz single bus system, and is used for receiving and distributing electric energy. It belongs to the new generation of miniaturized urban and rural power grid equipment, and has the characteristics of miniaturization, reasonable structure, safety and reliability, simple operation and so on. To meet the demand of power market, urban network, rural network transformation and box-type substation.
The switch cabinet is of metal enclosed box type fixed structure. The cabinet body is made of C profile and G profile and assembled by a variety of connecting parts. Cabinet body is divided into four small rooms, namely bus room, circuit breaker room, instrument room, cable room. Parts processing application of CNC punch, CNC bending and CNC machining center and other advanced equipment manufacturing, shape and size precision is high, manufacturing fast and accurate, convenient for the flexible combination of different schemes, can meet the different requirements of customers.
1. The structure of the cabinet is assembled, without welding, with high mechanical strength and beautiful appearance;
2. Gn30-12 rotary isolation switch is used at the back and upper part of the cabinet, and GN19-12C isolation switch is used for lower isolation. It is equipped with a reliable mechanical interlock device operated according to the program to provide reliable safety protection for operators and equipment;
3. The cabinet is air insulated and can be equipped with vacuum circuit breakers with integrated mechanism: fixed VS1 (ZN63A), VD4-12 and other circuit breakers;
4. The main switch, the isolation switch and the cabinet door all adopt the mandatory mechanical locking mode, the product meets the "five prevention" functional requirements;
5. Large space between cable terminals and ground, which is convenient for cable production, installation, testing and maintenance;
