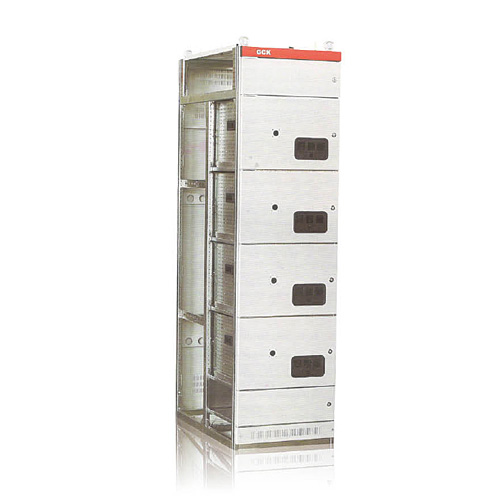

GHK fixed partition switch cabinet Room Our company absorbs the essence of similar products at home and abroad to develop and design the product, it is suitable for ac 50 (60) Hz malignant working voltage 690V and below the system, to meet all kinds of power supply, distribution box motor control needs. In line with THE IEC60439-1, IEC60947 and GB7251.1 and other standards.
The basic structure of the cabinet is made of E=25mm as the module mounting hole, and aluminum zinc plate is made by bending special mold. The internal structure is made of aluminum-zinc plate, and the door plate and side plate are sprayed on the surface. The internal unit is mainly used to separate the main bus room, electrical room and cable room. While retaining the advantages of Artu cabinet, the external features of the unit are adjusted to the internal structure, which greatly improves the strength of the whole cabinet. The vertical bus adopts the rectangular bus that is common in China. GHK cabinet can provide a complete cabinet structure scheme for distribution control system. The protection level of cabinet is IP3X-4X, up to IP54.
1. The design is comprehensive, reasonable and considerate, which can meet the assembly requirements of a variety of electrical components. Each component forms an independent functional unit to achieve perfect harmony;
2. Reliable power supply and distribution. The function unit adopts plug and pull type switch installation, with simple structure, convenient replacement and better interchangeability;
3. The material of the cabinet is processed with aluminum zinc plate, which has the advantages of oxidation resistance, corrosion resistance, rust resistance, good mechanical properties, etc.;
4. Modular design. The cabinet structure is modularized, generalized and serialized, which can be assembled into the desired compartment unit according to the requirements, and can meet the requirements as long as the moduli position is adjusted according to the changes of the switch;
5. Fully enclosed structure, internal modular separator is used to separate different functional units, the effective height of fixed separation is 1800mm, the height of separation unit is 8E/12E/16E/20E/24E, etc., with high protection grade and good safety performance;
6. Good grounding continuity. The frame and internal structural parts adopt aluminum-zinc plate and the coated structural parts on the surface have reliable grounding measures.
